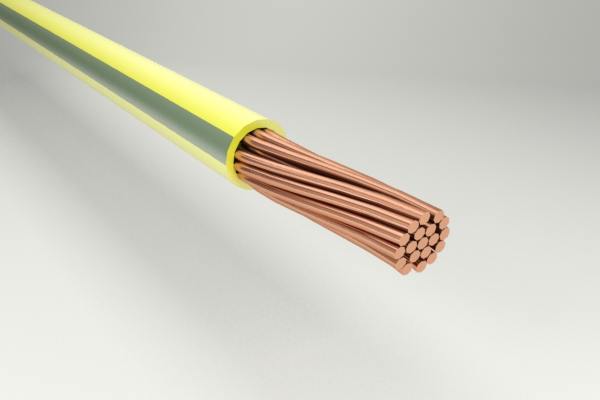

| H05V-U, H05V-K, H05V-R |
 |
| Single core conductors for lighting network, power and signal installation |
 |
| Temp. characteristic: |
|
| Max operating tº: |
+70ºC |
| Short circuit tº: |
+160ºC up to 5 sec. |
| Ambient tº: |
-5ºC/+70ºC |
| Температура на околната среда: |
-30ºC/+70ºC |
| Nominal voltage Uo/U: |
300/500V 450/750V |
| Test voltage: |
50Hz 2000V |
| Flame retardant: |
IEC 60332-1 |
| Min. bending radius: |
10xD<=10mm2 |
| 15xD>10mm2 |
 |
| Conductor: |
Cu wires cl. 1 or cl.2 and flexible cl. |
| Number of cores: |
0,5mm2 - 1mm2 / 1,5mm2 - 400mm2 |
| Insulation: |
PVC compound |
| Colour of insulation: |
 |
|
